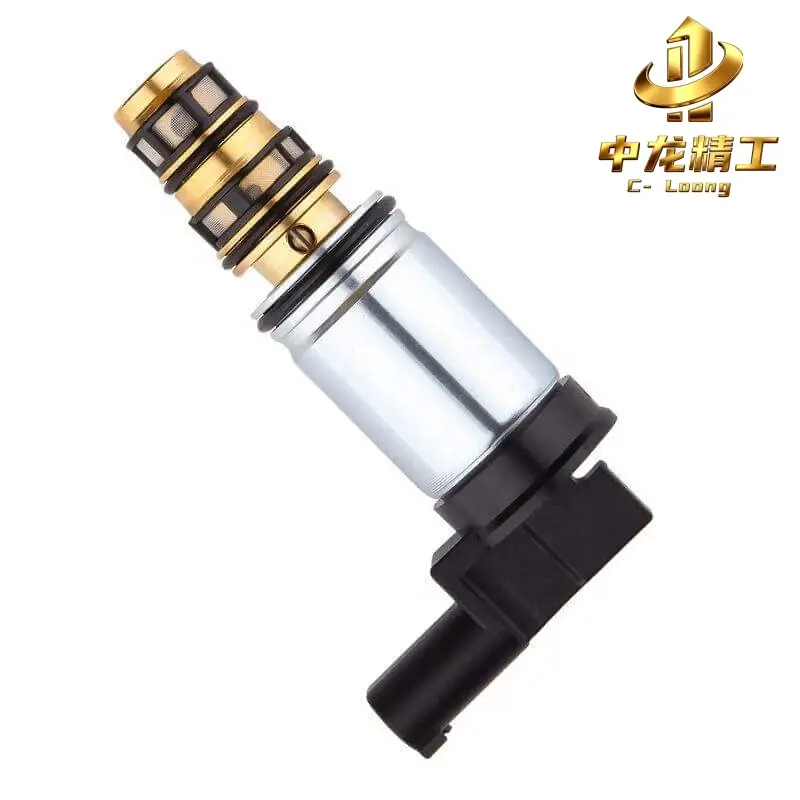

CL-3010 12V Electronic BMW AC Compressor Solenoid Valve with Oval 2-Pin Connector

What Does an AC Compressor Solenoid Valve Do?

An AC compressor solenoid valve is the electronic valve on a variable-displacement compressor that sets how much refrigerant the compressor delivers. The A/C control unit sends it a signal, and the valve raises or lowers compressor output, so the cabin holds its set temperature. It is also called a control valve.

Because the valve is a separate part, a failed one can be replaced while the compressor is still sound; Everything You Need to Know About the AC Compressor Control Valve explains how to tell the two cases apart. CL-3010 is one of the full range of control valves we supply.

CL-3010 Specifications

Key specifications of CL-3010, a 12V electronic BMW AC compressor solenoid valve with an oval 2-pin connector.

Which Cars Does This BMW AC Compressor Solenoid Valve Fit?

This BMW AC compressor solenoid valve, CL-3010, is listed for BMW in our supplier catalogue. The catalogue names the brand only, so our sales team confirms the BMW series, year and engine for each order. The valve is for combustion-engine cars.

Two more applications come from our earlier catalogue and old website: the Nissan Sentra 2013–2015 and the Hyundai Tucson 2014. The 2014 Tucson generation was sold as the ix35 in Europe and Australia. The same Sentra generation was also sold as the Sylphy in some Asian markets. Our sales team confirms the exact application for both before quotation.

Three BMW valves in our range share a 73 mm valve body, so they are easy to mix up in a multi-model order. The BMW AC compressor control valve CL-3004 has the same body dimensions but a connector height of 51.3 mm, against 48.5 mm for CL-3010. The BMW X3 AC compressor control valve CL-3007 matches the CL-3010 drawing in every dimension we hold. Our sales team confirms which of the three a car needs from its model, year and VIN, or from a photo of the old valve.

Why Is a Mixed-Brand Valve Worth Sourcing for Older Fleets?

CL-3010 is listed across BMW, the Nissan Sentra and the Hyundai Tucson, so one reference can serve a repair trade that handles all three. That suits markets where cars are kept for many years. The average car in the EU is 12.7 years old, according to ACEA.

The BMW brand delivered 2,169,761 vehicles in 2025, as reported by the BMW Group. Those cars include electrified ones that take no control valve, so the figure shows the size of the brand, not the number of cars for this part. What decides your quantity is how many combustion BMWs run where you sell. Where they are common, CL-3010 can sit in the regular order; elsewhere, 20 pieces beside your main lines is enough to test it.

Who Can Supply BMW A/C Parts Reliably?

C-Loong has worked in automotive A/C parts for more than 15 years. A repair trade that fits BMWs needs more than solenoid valves: the same cars call for compressors, clutches and expansion valves. We supply all of them, and they can ship in one order. Every CL-3010 is built to the same drawing and tested before it leaves, so a reorder matches the first delivery.

If you need a BMW part that is not in our range, send the specification, the quality level you expect, your target price and the quantity. We look for the closest match in the domestic supply market, then re-inspect it with our own production experience. If nothing suitable exists, we can evaluate custom development. You deal with one contact throughout.

How Is Every CL-3010 Solenoid Valve Tested Before Shipment?

Every CL-3010 is tested before shipment, one by one and not by sampling. A faulty valve that reaches a workshop comes back to you as a claim, so we look for the fault first. The process has five stages.

Incoming Parts

The valve body, cartridge, stem, coil, O-rings and spring are inspected before assembly. A damaged or weak part is removed here, before it becomes a valve that leaks or responds poorly.

Assembly

During assembly we check that the cartridge moves freely and that the assembly height matches the 73 mm drawing. CL-3010 carries three O-rings, Ø13.2 × 1.5, Ø16 × 1.5 and Ø20 × 2 mm, and a ring that is twisted or out of place will leak under pressure.

Electrical Tests on the Finished Valve

The coil of every finished valve is measured for resistance and insulation. Diode polarity is checked only on valves that carry a diode. A weak coil would not answer the A/C control unit, and the oval 2-pin plug would look normal from outside.

Function Tests on the Finished Valve

Next come valve action, response when powered and a check for sticking. Leak, flow and pressure-response tests follow, as the valve type requires. These show whether the valve moves when commanded and seals when it should.

When a Valve Fails a Check

A valve that fails any check is set aside, then reworked and tested again or removed. If the same fault repeats, we trace the whole batch. Problems are meant to be found on our line, not by your customers.

What Happens If Something Goes Wrong With an Order?

When an order has a problem, we deal with the problem first and settle responsibility afterwards. Send us the order number, the part model, the quantity affected and photos. We confirm what is affected and agree a temporary arrangement with you, so your own business is not held up.

After that we find the cause by stage: inspection, packing, dispatch or transport. The final solution is based on what the order shows. Our sales team follows it from start to finish, and it goes ahead only with your agreement. Faults in the product itself fall under the 1-year warranty.

Build a Purchase Plan for Your BMW Market

CL-3010 can start a BMW purchase plan: we help you decide which valves to carry, how many of each and which other A/C lines to add. Most buyers start with several models at 20 pieces each, test them in their market and build the regular order around the ones that sell. CL-3010 can be tested in the same order as CL-3007 and CL-3004.

An inquiry usually starts with the product, your country and the quantity; a list of the BMW models you handle also helps. If you also share what the valves are for and what the project should achieve, we can fit the plan more closely. If you are unsure what to send, our sales team will take the time to answer and suggest the option that fits.
