CL-3005 12V Electronic SD6C12 Control Valve for Sanden SD6C12 & SD7C16 Compressors, Citroën, Peugeot, Chery & Trumpchi

What Does an SD6C12 Control Valve Do?

An SD6C12 control valve is the electronic valve that sets how much refrigerant a variable-displacement compressor delivers. A signal from the A/C control unit operates the valve’s coil, and the valve adjusts compressor output to match the cooling demand, so the cabin holds its temperature without the compressor running at full load.

Because the valve is a separate part, a failed one can be replaced on its own while the compressor is still sound; our guide to replacing a control valve without changing the compressor explains how to tell the two cases apart. CL-3005 sits in the range of control valves we supply alongside references for other makes.

CL-3005 Specifications

Key specifications of CL-3005, an electronic control valve listed for Sanden SD6C12 and SD7C16 compressors.

Which Cars Does This SD6C12 Control Valve Fit?

This SD6C12 control valve is listed for Trumpchi, Citroën, Peugeot and Chery cars with a Sanden SD6C12 or SD7C16 compressor. The same brand can use different valves on different compressors, so the vehicle model, year and compressor are confirmed with you by our sales team before quotation.

Peugeot and Citroën cars use more than one valve. Our longer, dark-bodied valve for Peugeot and Citroën, CL-2006, measures 83.5 mm against 73 mm for CL-3005 and has larger cartridge diameters, so it does not replace CL-3005. CL-3006 shares the main dimensions of CL-3005 and is also used on Peugeot and Citroën cars. Send us the models you handle most, and our sales team confirms which valve each one needs.

Why Are Peugeot, Citroën and Chery Markets Worth Sourcing SD6C12 Control Valves For?

Peugeot, Citroën and Chery cars are sold in large numbers across Europe, the Middle East, Africa and other export markets, which gives SD6C12 control valves a wide base of cars that will need A/C repairs. France is the home market of both Peugeot and Citroën: in 2025, Peugeot was the second best-selling brand there with 221,001 registrations, down 5%, and Citroën the fourth with 115,576, up 3.6%, according to Best Selling Cars. Further afield, Stellantis, the group behind both brands, shipped 453,000 vehicles in the Middle East and Africa in 2025, up 7%, as reported in its 2025 full-year results. Chery reaches a different set of markets: the Chery Group exported 1,344,000 vehicles across all its models in 2025, up 17.4%, and has been the top Chinese brand for passenger-car exports for 23 years running (China Securities Journal).

These cars stay in service for years: the average EU car is 12.7 years old, according to ACEA. In hot export markets, 2024 was the Arab region’s hottest year on record, as the WMO reports, so A/C repairs are hard to postpone. A valve that can be replaced on its own is the lower-cost repair, which keeps it moving through the repair trade in both kinds of market.

Who Can Supply These Control Valves Reliably?

C-Loong supplies CL-3005 together with the other A/C parts your customers ask for, backed by more than 15 years in automotive A/C parts and coverage of almost every vehicle make. One order can cover this valve, the compressor clutches and expansion valves we also make, so you deal with one supplier instead of several.

If a valve you need is not one we make, send us the specification, the quality level you expect, a target price and the quantity. We use our knowledge of China’s supply market to find the closest option, then check it again against what we know from our own production before offering it. If nothing on the market matches, we can review the requirement as a custom development case. The result is one contact for the whole order.

How Is Every CL-3005 Control Valve Tested Before Shipment?

Every CL-3005 is tested before it is packed, not a sample from the batch. The checks run in stages, and each one stops a different kind of problem from reaching your customers.

Incoming Parts

Before assembly we inspect the valve body, core, stem, coil, O-rings and springs. A weak spring or a damaged O-ring found here never becomes a valve that leaks or regulates badly after it is fitted.

Assembly

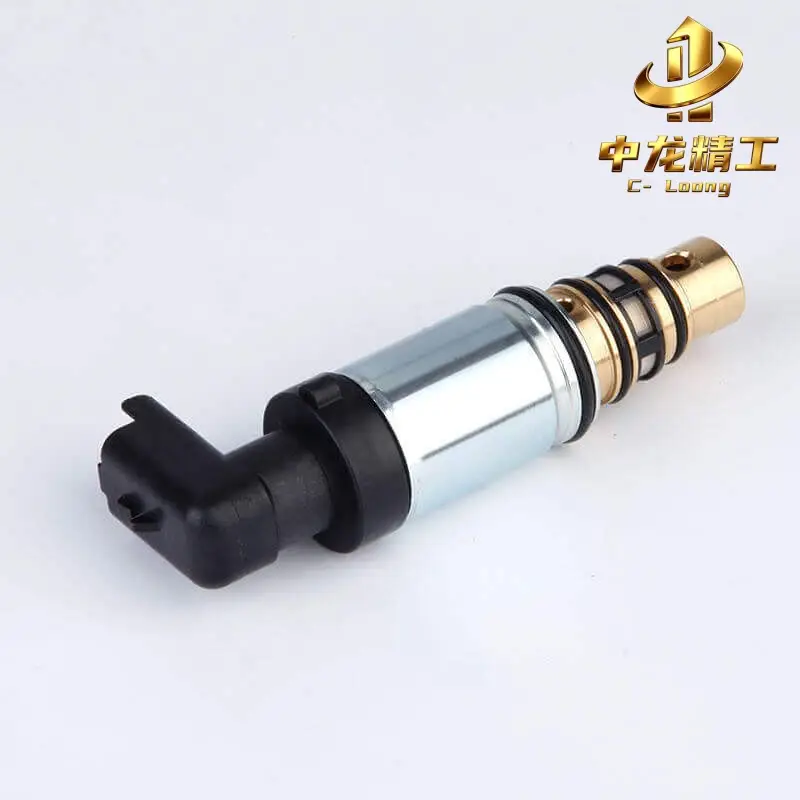

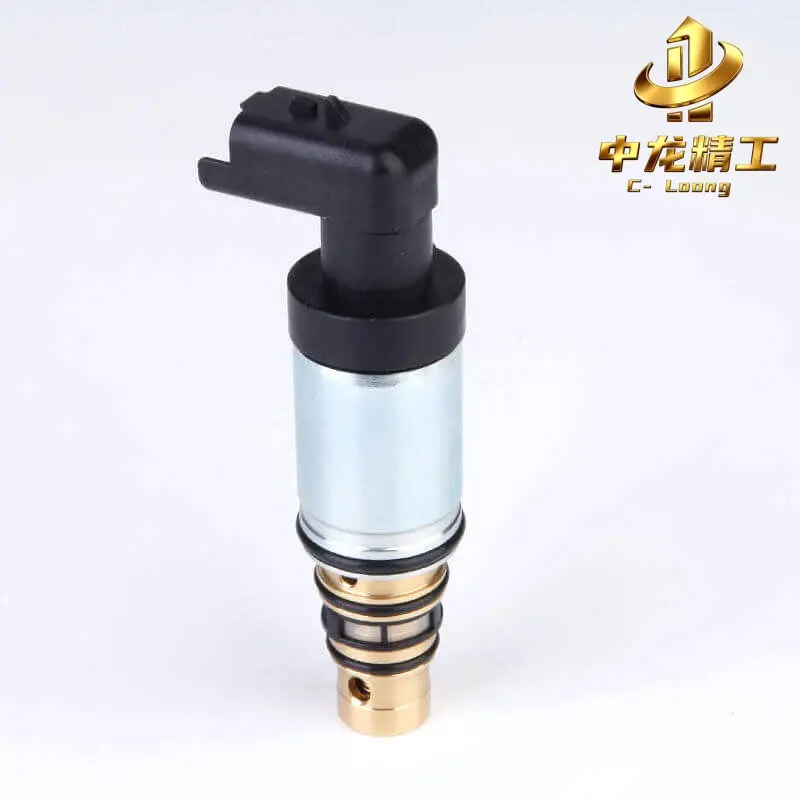

During assembly we check that the core moves freely, the assembly height is correct and the O-rings sit properly. On CL-3005 this matters for the three O-rings, Ø13.2, Ø16 and Ø20 mm, which seal the brass-coloured cartridge inside the compressor. A ring that sits wrong will leak once the system is under pressure.

Electrical Tests on the Finished Valve

Each finished valve is tested for coil resistance and insulation, and for diode polarity where the valve has one. These tests find coil faults that cannot be seen from the outside and would leave the valve unable to respond to the A/C control signal.

Function Tests on the Finished Valve

We then check actuation, energizing response and sticking, plus leakage, flow and pressure response for this valve type. These show whether the valve regulates compressor output the way it should once it is in the car.

When a Valve Fails a Check

A valve that fails any check is set aside, then reworked and retested or rejected. If the same fault appears again, we review the whole batch, not just the single valve. The aim is that faults are found on our line, not by your customers.

What Happens If Something Goes Wrong With an Order?

If something goes wrong, we deal with the problem in front of you first and do not wait to settle who is responsible. Send us the order, the part number, the quantity affected, the vehicle and compressor the valve was fitted to, and photos. We confirm what is affected and agree a practical interim step with you, so your customer is not left waiting.

Once the cause is clear, we trace it to the stage where it arose, whether inspection, packing, dispatch or transport, and propose a final solution based on the actual order. Our sales team follows the case through, and nothing is put into effect until you agree. Product quality issues are handled under the 1-year warranty.

Build a Purchase Plan for Your Market

With CL-3005 as a starting point, we can put together a purchase plan for your market: which valves to carry for the makes you sell, in what quantities, and which other lines are worth adding. Most buyers start with several models at 20 pieces each, test them in their market, and build the regular order around the ones that sell. CL-3005 can be tested alongside other references from our range in the same order.

An enquiry usually starts with the product, your target market, a vehicle list and the quantity you have in mind. If you can also tell us what the valves are for and what the project aims to achieve, the plan can be shaped more closely around it. If you are not sure what to send, contact our sales team directly; they will answer patiently and suggest the most suitable option.
