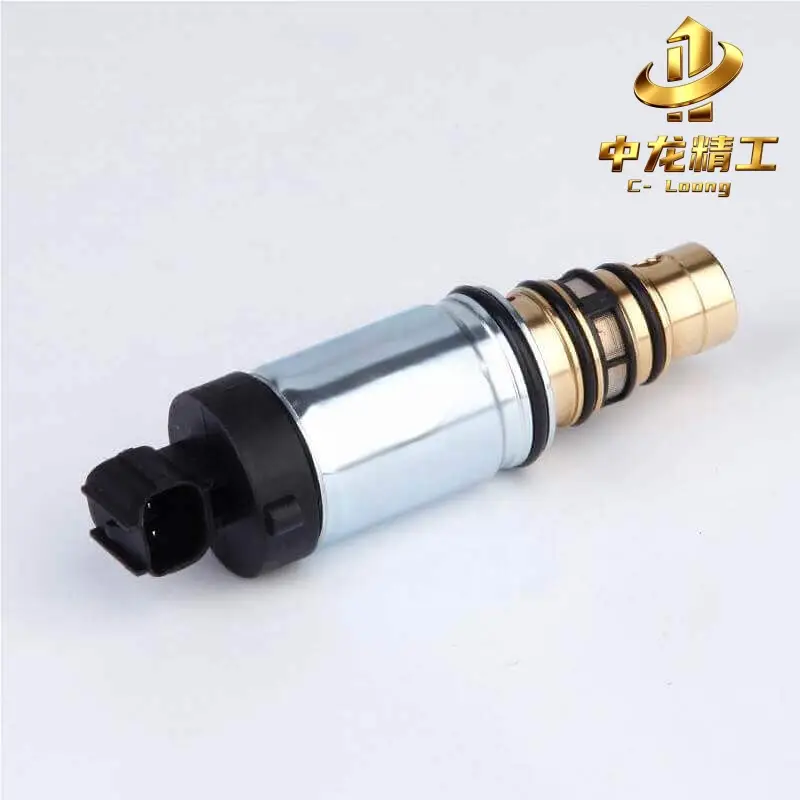

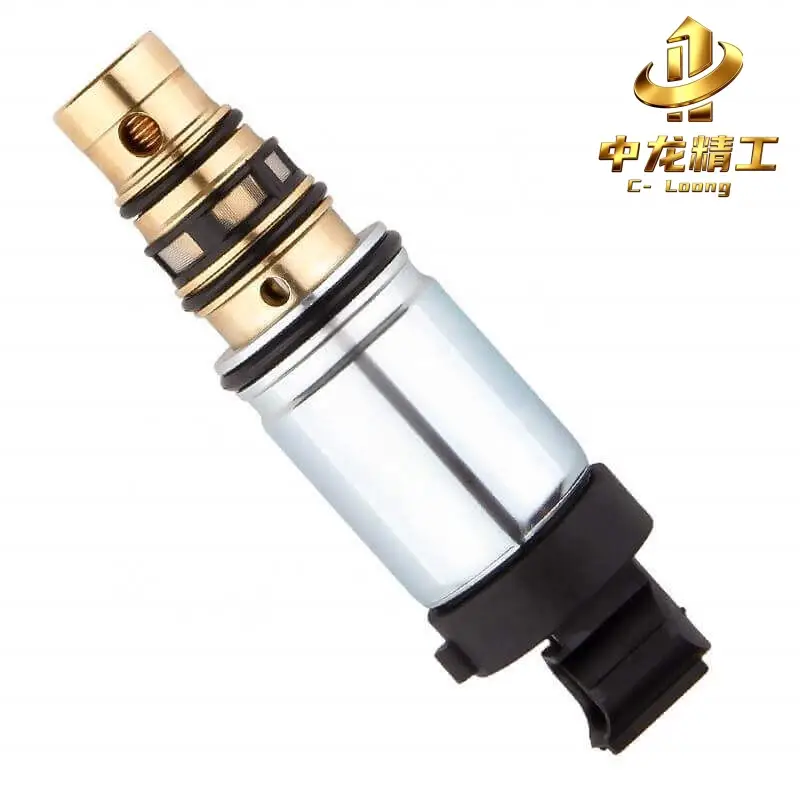

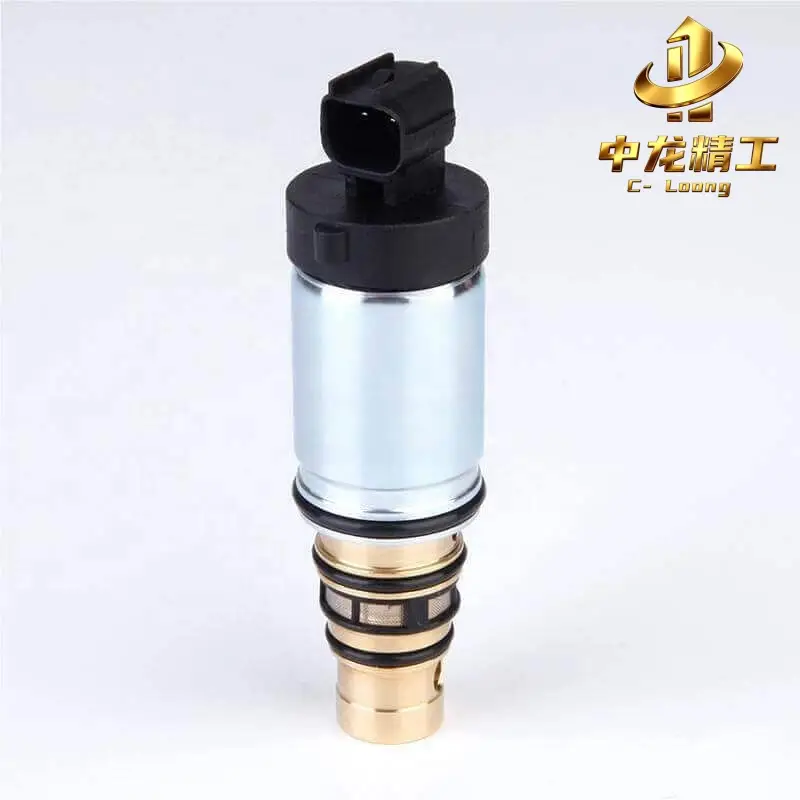

CL-3003 Electronic PXE16 Control Valve for Sanden PXE16 Compressors, Buick Regal, Land Rover

What a PXE16 Control Valve Does in a Sanden Compressor

The Sanden PXE16 is a variable-displacement compressor, and its control valve decides how much refrigerant it pumps. The valve is electronic: the control unit sends it a signal, the valve changes the pressure inside the compressor, and that pressure sets the stroke of the pistons. At a high stroke the compressor pumps more and the cabin cools quickly. At a low stroke it pumps less and the engine carries less load. A small change at the valve becomes a large change in cooling at the vents.

When the valve sticks or its coil fails, the belt still turns and the compressor still runs, but cooling becomes weak or inconsistent, and the workshop replaces the valve instead of the compressor. The CL-3003 is our replacement for this job, and it is one of the wholesale AC compressor control valves we supply for Sanden and other compressor platforms.

CL-3003 PXE16 Control Valve Specifications

These are the details you need to match CL-3003 to the enquiries you receive and to list it correctly in your own catalogue.

Which Vehicles Use the CL-3003 PXE16 Control Valve?

The CL-3003 PXE16 control valve fits the Sanden PXE16 compressor used in these vehicles:

• Buick Regal
• Other GM Buick models
• Land Rover
• Chevrolet Malibu

The valve is listed by compressor type, so a PXE16 control valve enquiry for any of these vehicles is answered by this model. Control valves for Volkswagen and Audi cars with Sanden PXE16 or PXE14 compressors are listed separately, as CL-3001. To check a particular model, year or engine, contact our sales team or send your vehicle list through the inquiry form.

Why a PXE16 Control Valve Is Worth Sourcing

A compressor control valve is a steady replacement category: when the valve sticks or its coil fails, the workshop replaces it, and each of those jobs is a sale for whoever can supply the right model. The Sanden PXE16 compressor is fitted to cars from GM and Land Rover, and those cars are now old enough to be repaired outside dealer networks. The average passenger car is 12.7 years old in the EU (ACEA, 2026) and 14.5 years old in the United States (S&P Global Mobility, 2025), so older cars keep coming to independent workshops, which is where you sell.

The opportunity is widest where three things meet: many cars with Sanden PXE16 compressors on the road, a long hot season in which the A/C runs most of the year, and an independent repair channel that orders by compressor type. In those markets one CL-3003 answers enquiries from several vehicle brands that share the same compressor, so a single purchase line does the work of several, and it sits naturally in a range of wholesale AC compressor control valves built around the cars your customers bring in.

Growing Your A/C Parts Business Together

A familiar compressor platform, a hot climate and ageing cars make a clear opening for this valve, and whether it turns into steady business depends on the supplier behind it. We make four A/C product lines: compressors, compressor clutches, expansion valves and control valves. We start from the cars your customers bring in. If most of your enquiries are for GM and Land Rover cars, for example, we point you to the valve for their compressor type and tell you which other parts for the same cars are worth adding to your purchasing plan.

Parts Outside Our Range, Sourced and Checked for You

When a part on your list is outside our own production, our 15+ years in the A/C parts industry does the work for you. We know China’s supply market well: which factories make which parts, and at what level of quality. You tell us the price level your customers accept, the service life they expect and the quantity you need. We compare the options we know against those points, recommend the one that fits and explain why, including when the lower-cost version is enough. Before those parts join your order, we check their construction and workmanship against what we know from making these parts ourselves, and anything that falls short doesn’t ship. You send one list, deal with one contact and receive one shipment. With a minimum of 20 pieces per model, you can mix different control valves and other A/C parts in the same order.

How Is Every PXE16 Control Valve (CL-3003) Tested Before Shipment?

Every CL-3003 passes at least three checks before it is packed: component inspection, functional testing after assembly, and a final verification against the order. Valve bodies, coils and connectors are checked for correct identification, configuration, key dimensions and visible condition, and parts that do not conform are separated before production. Component matching, assembly orientation, cleanliness and critical dimensions are checked during assembly. Finished valves are checked against the confirmed model, the order record and the reference sample, and are separated and labelled at packing so each carton matches its packing list.

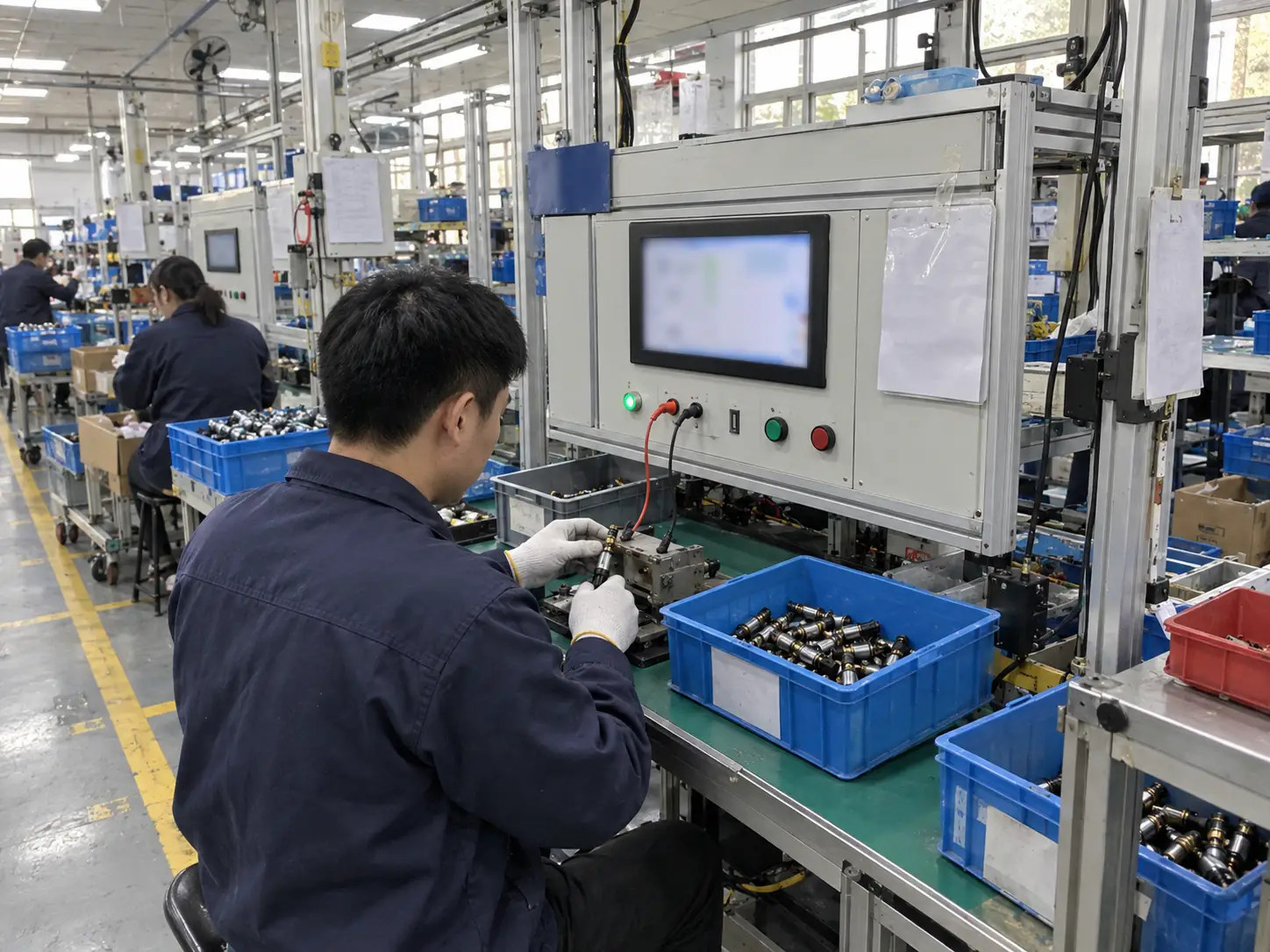

The most important step is the functional and electrical test. Each completed valve is tested for coil resistance, insulation and applicable diode polarity, then for valve actuation, energizing response and abnormal sticking, with leakage, flow or pressure-response tests applied according to the valve type. A valve can look perfect and still fail to respond when it is energised, and no visual inspection can show that. This is the check that separates a valve that fits from a valve that works, and it is what keeps the valves in your second order performing the same as the ones in your first.

What Happens If Something Goes Wrong With Your Order?

If something goes wrong, we deal with the immediate problem first, then find the cause, and our sales team agrees the final solution with you.

We don’t ask you to prove whose fault it is before we act, and we don’t go quiet while the cause is checked. Tell us what you are seeing: the order reference, how many pieces are affected, the compressor model the valve was installed on, and photos or a short video if you have them. You get a first reply within about two hours of our working day. The first thing we deal with is the problem in front of you: what your customer is waiting for, where the goods are, and what you have already promised. That way you have an answer for your own customer before anything else is decided.

Once the immediate problem is under control, we check the cause in a fixed order: whether the right valve was supplied for that compressor, then the product, packaging and transport, then the installation and the rest of the A/C system. We don’t call it a product fault or an installation fault until all of this is checked. Our sales team then goes through the result with you, including what it means for the rest of the order and whether those units can stay on sale, and agrees the final solution with you.

Parts Outside Our Range, Sourced and Checked for You

A buyer’s list often runs beyond what one factory makes, and every extra supplier means another quote to compare, another factory you have never met and another quality risk to carry. This is where our 15+ years in the A/C parts industry and our knowledge of China’s supply market do the work for you. Tell us the price level, service life and quantity you need for a part outside our own production, and we recommend the option that fits and explain why. Before it joins your order, we check its construction and workmanship against what we know from making these parts ourselves, and anything that falls short doesn’t ship. If no existing part fits, we can develop a custom valve to your specifications. You send one list and receive one shipment, and with a minimum of 20 pieces per model you can mix different parts in the same order.
