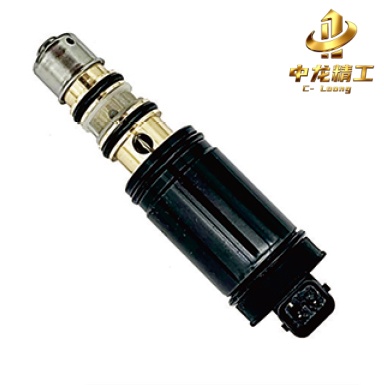

CL-2010 12V Electronic AC Compressor Control Solenoid Valve for Denso 7SEU17C 6SEU16C Compressors, Mercedes-Benz

What a Denso Compressor Control Valve Does in a Mercedes-Benz A/C System

A Denso compressor control valve is the electronic valve that sets how much refrigerant the compressor pumps. Denso 7SEU17C and 6SEU16C compressors are variable-displacement units: the control unit sends a signal to the valve, the valve changes the pressure inside the compressor, and that pressure sets the stroke of the pistons. At a high stroke the compressor pumps more and the cabin cools quickly. At a low stroke it pumps less and the engine carries less load. Without a working valve, the compressor cannot follow the cooling demand.

When the valve sticks or its coil fails, a Mercedes-Benz can lose cooling or hold the compressor at the wrong output even though the compressor itself is sound. This is the situation behind a 7SEU17C control valve or 6SEU16C control valve enquiry from your workshop customers. The CL-2010 is our replacement for this job, and it is one of the wholesale AC compressor control valves we supply for the Mercedes AC compressor control valve market.

CL-2010 Denso Compressor Control Valve Specifications

These are the details you need to match CL-2010 to the enquiries you receive and to list it correctly in your own catalogue.

Which Mercedes-Benz Compressors Does the CL-2010 Control Valve Fit?

The CL-2010 control valve fits the Denso 7SEU17C and 6SEU16C compressors used in Mercedes-Benz cars. We list it by compressor type, so a 7SEU17C control valve enquiry and a 6SEU16C control valve enquiry are both answered by this one model. Control valves for Valeo compressors on Mercedes-Benz are listed separately, as CL-2008. To check a particular Mercedes-Benz model, year or engine, contact our sales team or send your vehicle list through the inquiry form.

Why a Denso Compressor Control Valve Is Worth Sourcing for Mercedes-Benz

An A/C compressor control valve is a steady replacement category: when the valve sticks or its coil fails, the workshop replaces it, and each of those jobs is a sale for whoever can supply the right model. Mercedes-Benz sold 2.2 million cars and vans in 2025 alone (Mercedes-Benz Group, 2025), and the average passenger car in the EU is already 12.7 years old (ACEA, 2026), so older cars keep coming to independent workshops, which is where you sell. In hot markets the A/C runs most of the year and the valve wears out sooner. One CL-2010 answers enquiries for two Denso compressor types, and it sits naturally in a range of wholesale AC compressor control valves built around the cars your customers bring in.

Growing Your A/C Parts Business Together

A familiar brand, a hot climate and ageing cars make a clear opening for this valve, and whether it turns into steady business depends on the supplier behind it. We make four A/C product lines: compressors, compressor clutches, expansion valves and control valves. We start from the cars your customers bring in. For Mercedes-Benz, that could mean our CL-2001 control valve for Mercedes-Benz, Audi and BMW alongside the CL-2010.

Parts Outside Our Range, Sourced and Checked for You

When a part on your list is outside our own production, our 15+ years in the A/C parts industry does the work for you. We know China’s supply market well: which factories make which parts, and at what level of quality. You tell us the price level your customers accept, the service life they expect and the quantity you need. We compare the options we know against those points, recommend the one that fits and explain why, including when the lower-cost version is enough. Before those parts join your order, we check their construction and workmanship against what we know from making these parts ourselves, and anything that falls short doesn’t ship. You send one list, deal with one contact and receive one shipment. With a minimum of 20 pieces per model, you can mix different Mercedes-Benz A/C parts in the same order.

How Is Every Denso Compressor Control Valve (CL-2010) Tested Before Shipment?

Every CL-2010 passes at least three checks before it is packed: component inspection, functional testing after assembly, and a final verification against the order. Valve bodies, coils and connectors are checked for correct identification, configuration, key dimensions and visible condition, and parts that do not conform are separated before production. Component matching, assembly orientation, cleanliness and critical dimensions are checked during assembly. Finished valves are checked against the confirmed model, the order record and the reference sample, and are separated and labelled at packing so each carton matches its packing list.

The most important step is the functional and electrical test. Each completed valve is tested for coil resistance, insulation and applicable diode polarity, then for valve actuation, energizing response and abnormal sticking, with leakage, flow or pressure-response tests applied according to the valve type. A valve can look perfect and still fail to respond when it is energised, and no visual inspection can show that. This is the check that separates a valve that fits from a valve that works, and it is what keeps the valves in your second order performing the same as the ones in your first.

What Happens If Something Goes Wrong With Your Order?

If something goes wrong, we deal with the immediate problem first, then find the cause, and our sales team agrees the final solution with you.

We don’t ask you to prove whose fault it is before we act, and we don’t go quiet while the cause is checked. Tell us what you are seeing: the order reference, how many pieces are affected, the compressor model the valve was installed on, and photos or a short video if you have them. You get a first reply within about two hours of our working day. The first thing we deal with is the problem in front of you: what your customer is waiting for, where the goods are, and what you have already promised. That way you have an answer for your own customer before anything else is decided.

Once the immediate problem is under control, we check the cause in a fixed order: whether the right valve was supplied for that compressor, then the product, packaging and transport, then the installation and the rest of the A/C system. We don’t call it a product fault or an installation fault until all of this is checked. Our sales team then goes through the result with you, including what it means for the rest of the order and whether those units can stay on sale, and agrees the final solution with you.

Match the CL-2010 and Other Mercedes-Benz A/C Parts to Your Market

Share a little about your market, and we will show you where the CL-2010 fits in it. That includes which other control valves, compressors, clutches and expansion valves are worth adding for the same Mercedes-Benz cars, which models are likely to move where you sell, and which are better left out. You get a purchasing plan built around the cars your customers bring in, with pricing for the models that make sense.

Three details are enough to begin: the product or compressor model, the country you sell into, and the quantity you are considering. It also helps to know the purpose of the purchase, such as extending a Mercedes-Benz range, replacing a current source or entering a new market, and the goal of the project, from a trial order to a regular supply line. With that, the plan can be matched more closely to your business. If some of this is not yet clear, our sales team can go through it with you, answer your questions in detail and suggest a practical way forward.
