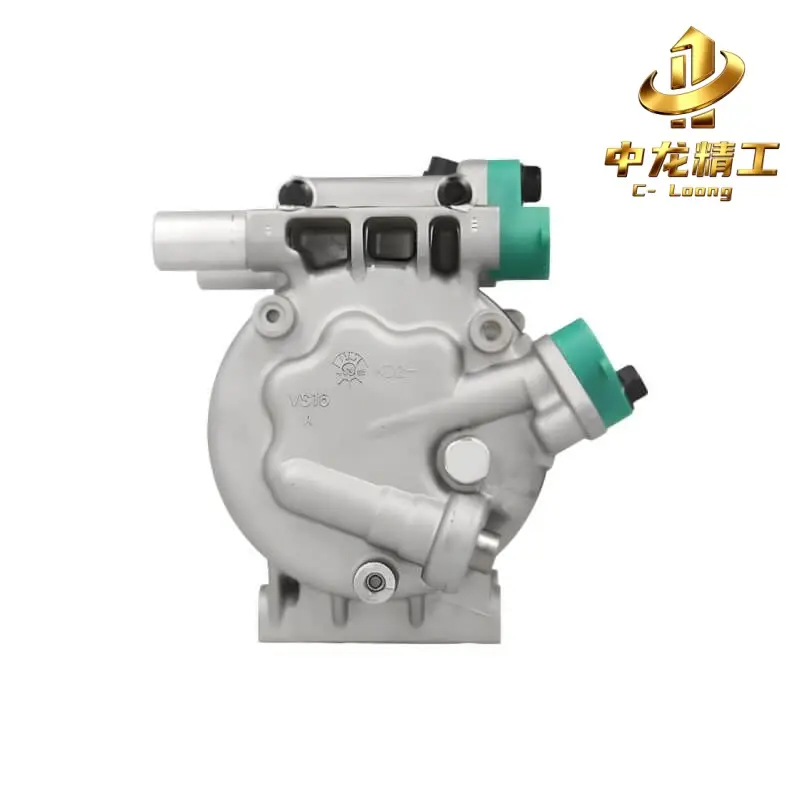

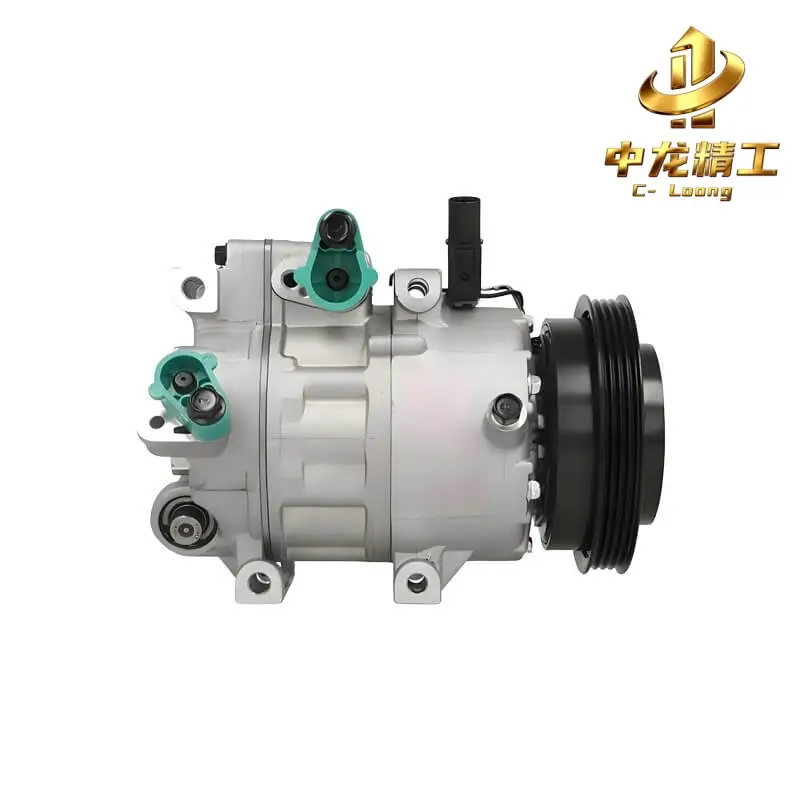

CL-603703 977011e000 977011e001 12V Auto AC Compressor for Hyundai Accent ELANTRA Halla-HCC

Why the A/C Compressor Is Essential to the Cooling System

The compressor is the driving unit of an automotive air-conditioning system. It draws in low-pressure refrigerant vapour, compresses it and sends the resulting high-pressure refrigerant toward the condenser. Without this pressure change and circulation, the refrigerant cannot complete the cooling cycle or remove heat effectively from the vehicle cabin.

As a VS16 variable-displacement compressor, the CL-603703 adjusts its output as cooling demand changes, helping maintain stable cooling while avoiding unnecessary compressor load. If the compressor becomes worn, damaged or unable to build the required pressure, the system may experience weak or lost cooling, abnormal noise or refrigerant leakage. When the complete compressor assembly is no longer serviceable, replacing the unit becomes essential to restoring normal A/C operation.

CL-603703 Product Specifications

The confirmed model, OE references, voltage and pulley configuration give buyers a clearer basis for product comparison, quotation and order communication, particularly when several visually similar compressors are purchased together.

Why Complete A/C Compressors Remain an Important Replacement Category

The replacement opportunity for automotive A/C compressors is supported by a large and ageing global vehicle population. S&P Global Mobility’s 2026 aftermarket report places the number of light vehicles in operation at approximately 1.6 billion in 2025 and forecasts growth to 1.9 billion by 2034. Vehicles staying in service for longer create continuing demand for major A/C replacement components. (S&P Global Mobility)

When a compressor develops serious internal wear, leakage or mechanical damage and can no longer be repaired economically, replacing the complete unit becomes necessary to restore A/C operation. This gives complete compressors a clear and continuing role in the automotive aftermarket.

For distributors, CL-603703 adds another Hyundai-related application to the compressor range. It can be ordered alongside other models according to local vehicle demand, helping buyers broaden workshop coverage, test sales performance across several applications and identify models with stronger market potential.

More Than a Single Compressor Model

Once buyers decide to add a compressor to their range, the next question is whether the supplier can support their wider product requirements. In addition to CL-603703, C-Loong manufactures and supplies compressors for a broad variety of vehicle makes and A/C applications. We support bulk orders, mixed-model purchasing and customization based on confirmed requirements, It will also assist partners in continuously uncovering the needs of the target market.

If a required model is not currently available from our own production range, our manufacturing and industry experience still gives customers another option. We can search within the Chinese supply market, compare suitable products and review their construction, workmanship and quality against the customer’s requirements before making a recommendation.

From the initial model list to order confirmation and delivery updates, our team stays involved throughout the process. This reduces fragmented communication with multiple suppliers and gives partners a clearer, more manageable way to develop their compressor range.

How Is an Automotive A/C Compressor Tested Before Shipment?

C-Loong evaluates compressor quality through sealing inspection, mechanical and electrical checks, and a simulated vehicle operating test. Instead of relying only on appearance, these checks examine whether the compressor can maintain sealing, engage correctly, build suction and discharge pressure, and operate without abnormal noise or vibration.

1. Specification and Assembly Verification

Before testing begins, the compressor model, voltage, pulley configuration and component assembly are checked against the production requirements. Technicians examine the housing connection, pulley and clutch position, electrical connector, mounting points and refrigerant ports. This prevents an incorrectly assembled unit from proceeding to performance testing.

2. Sealing Integrity Test

The compressor’s sealed circuit is checked for leakage, with particular attention given to the housing joints, shaft seal and refrigerant connections. Leakage at any of these positions may allow refrigerant or compressor oil to escape after installation, reducing cooling performance and potentially causing premature compressor damage.

This test verifies that the assembled compressor can maintain the sealing integrity required for normal A/C system operation.

3. Mechanical Rotation and Clutch Test

The compressor shaft and pulley are rotated to check for binding, uneven resistance, scraping or excessive movement. These conditions may indicate incorrect assembly, internal interference or problems around the bearing and rotating components.

For this 12V clutch-equipped compressor, the clutch coil is energized to confirm that the clutch engages and releases correctly. The engagement should be stable, without slipping, delayed response or continuous rubbing between the clutch surfaces.

4. Simulated Vehicle Operating Test

The compressor is installed on a test bench that reproduces key operating conditions found in a vehicle A/C system. During the test, the compressor is driven through defined operating points while technicians observe:

• Start-up and clutch engagement response
• Suction-side pressure reduction
• Discharge-side pressure build-up
• Pressure response and operating stability
• Abnormal mechanical noise
• Excessive vibration or irregular movement

A compressor may rotate normally during a static check but still show weak pumping, unstable pressure, internal noise or abnormal vibration once it is placed under load. The simulated operating test is therefore the most important step for evaluating whether the compressor can perform its intended function before shipment.

5. Post-Test and Shipment Verification

After the operating test, the compressor is checked again for leakage traces, external damage, connector condition, pulley movement and port protection. The model, label and order quantity are then matched with the confirmed order before packing.

Customers are notified before dispatch, and the order status is shared throughout the shipping process. This final verification connects the tested compressor with the correct order and reduces the risk of receiving an incorrect or transport-damaged product.

What Support Is Available If a Compressor Order Has a Problem?

If a problem occurs after delivery, C-Loong’s first priority is to help the customer find a practical solution and reduce the immediate impact on sales, inventory or downstream orders. The cause is then reviewed based on the available order and product information, without assuming that every issue is a product defect.

Finding a Practical Solution First

When an issue is reported, our team first evaluates how it is affecting the customer’s current order. Depending on the situation, we may help check available replacement models, compatible supply options or another workable arrangement so the customer can respond to urgent market or delivery needs as quickly as possible.

Reviewing What Caused the Problem

Once the immediate situation is under control, we review the order information, product condition and reported symptoms. Compressor problems may be related to product quality, transportation damage, storage conditions, incorrect application, installation procedures or contamination remaining in the A/C system.

Considering these possibilities helps us avoid drawing conclusions too early and makes the next action more accurate.

Following the Issue Through to a Clear Outcome

After the cause and responsibility have been assessed, we communicate the findings and discuss the appropriate next step with the customer. Relevant information is also fed back to production and quality-control teams when necessary, helping prevent similar issues from affecting future orders.

Why Work With C-Loong for Automotive A/C Compressor Supply?

C-Loong combines automotive A/C compressor manufacturing experience with broad model coverage and flexible order support. We can supply CL-603703 alongside other compressor models, helping customers build a more practical product range through bulk or mixed-model orders.

When a required model is not currently available from our own production range, our experience in compressor manufacturing helps us evaluate alternative products within the Chinese supply market. We consider the customer’s application, quality expectations, target cost and order requirements before recommending a suitable supply option.

From model confirmation and production control to simulated operating tests, shipment updates and after-sales support, our role extends beyond delivering a single compressor. We work to make each order easier to manage and provide customers with a more dependable route for developing their automotive A/C compressor range.

Discuss Your Compressor Requirements

If CL-603703 or another automotive A/C compressor fits your current product plan, send us the required models, estimated quantities and quality or packaging requirements. Our team will review the request and help you identify an appropriate supply option.
